1 Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package

2 Applications

  • Primary Side Telecom
  • Secondary Side Synchronous Rectifier
  • Motor Control

3 Description

This 100 V, 5.3 mΩ, SON 5 mm × 6 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 100 V
Qg Gate Charge Total (10 V) 37 nC
Qgd Gate Charge Gate to Drain 6.6 nC
RDS(on) Drain-to-Source On Resistance VGS = 6 V 6.0 mΩ
VGS = 10 V 5.3 mΩ
VGS(th) Threshold Voltage 2.7 V


Ordering Information

Device Media Qty Package Ship
CSD19531Q5A 13-Inch Reel 2500 SON 5 x 6 mm
Plastic Package		 Tape and Reel
CSD19531Q5AT 7-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 100 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 100 A
Continuous Drain Current (Silicon limited), TC = 25°C 110
Continuous Drain Current(1) 16
IDM Pulsed Drain Current(2) 337 A
PD Power Dissipation(1) 3.3 W
Power Dissipation, TC = 25°C 125
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 60 A, L = 0.1 mH, RG = 25 Ω		 180 mJ
  1. Typical RθJA = 40°C/W on a 1-inch2, 2-oz. Cu pad on a 0.06-inch thick FR4 PCB.
  2. Max RθJC = 1.0°C/W, pulse duration ≤100 μs, duty cycle ≤1%

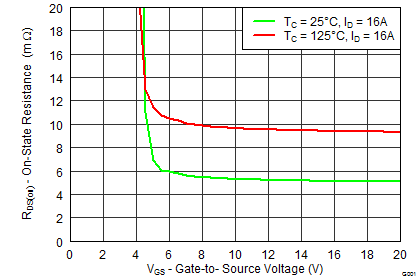

RDS(on) vs VGS

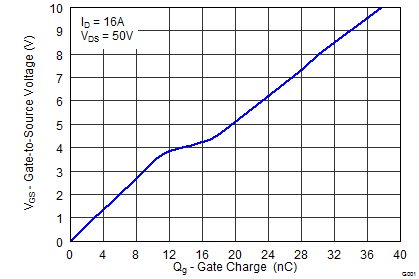

Gate Charge
