1 Features

  • Ultra-Low Qg and Qgd
  • Low RDS(on)
  • Low-Thermal Resistance
  • Avalanche Rated
  • Lead Free
  • RoHS Compliant
  • Halogen Free
  • SON 3.3-mm × 3.3-mm Plastic Package

2 Applications

  • Solid State Relay Switch
  • DC-DC Conversion
  • Secondary Side Synchronous Rectifier
  • Isolated Converter Primary Side Switch
  • Motor Control

3 Description

This 60-V, 8.1-mΩ, SON 3.3-mm × 3.3-mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View
CSD18543Q3A P0093-01_LPS198.gif

 .

 .

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 60 V
Qg Gate Charge Total (10 V) 11.1 nC
Qgd Gate Charge Gate-to-Drain 1.7 nC
RDS(on) Drain-to-Source On Resistance VGS = 4.5 V 12.0 mΩ
VGS = 10 V 8.1
VGS(th) Threshold Voltage 2.0 V

Device Information(1)

DEVICE MEDIA QTY PACKAGE SHIP
CSD18543Q3A 13-Inch Reel 2500 SON
3.30-mm × 3.30-mm
Plastic Package		 Tape and Reel
CSD18543Q3AT 7-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 60 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package Limited) 35 A
Continuous Drain Current (Silicon Limited), TC = 25°C 60
Continuous Drain Current(1) 12
IDM Pulsed Drain Current(2) 156 A
PD Power Dissipation(1) 2.8 W
Power Dissipation, TC = 25°C 66
TJ,
Tstg 		Operating Junction,
Storage Temperature		 –55 to 150 °C
EAS Avalanche Energy, Single Pulse
ID = 33 A, L = 0.1 mH, RG = 25 Ω		 55 mJ
  1. Typical RθJA = 45°C/W on a 1-in2, 2-oz Cu pad on a
    0.06-in thick FR4 PCB.
  2. Max RθJC = 1.9°C/W, pulse duration ≤ 100 μs, duty cycle ≤ 1%.

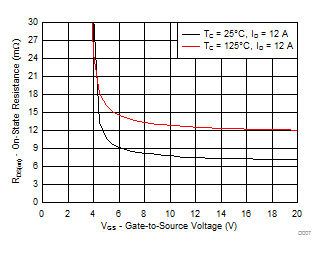

RDS(on) vs VGS

CSD18543Q3A D007_SLPS633.gif

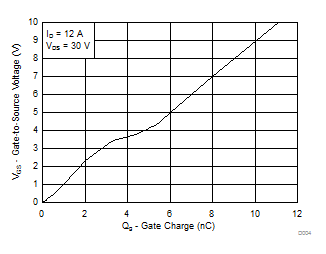

Gate Charge

CSD18543Q3A D004_SLPS633_FP.gif
