1 Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen-Free
  • SON 5 mm × 6 mm Plastic Package

2 Applications

  • DC-DC Conversion
  • Secondary Side Synchronous Rectifier
  • Motor Control

3 Description

This 40-V, 1.8-mΩ, 5 mm × 6 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View

CSD18502Q5B P0093-01_LPS198.gif

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain to source voltage 40 V
Qg Gate charge total (4.5 V) 25 nC
Qgd Gate charge gate to drain 8.4 nC
RDS(on) Drain to source on resistance VGS = 4.5 V 2.5 mΩ
VGS = 10 V 1.8 mΩ
VGS(th) Threshold voltage 1.8 V

Ordering Information(1)

DEVICE QTY MEDIA PACKAGE SHIP
CSD18502Q5B 2500 13-Inch Reel SON 5 mm × 6 mm Plastic Package Tape and Reel
CSD18502Q5BT 250 7-Inch Reel
  1. For all available packages, see the orderable addendum at the end of the datasheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain to source voltage 40 V
VGS Gate to source voltage ±20 V
ID Continuous drain current (package limited) 100 A
Continuous drain current (silicon limited), TC = 25°C 204
Continuous drain current(1) 26
IDM Pulsed drain current(2) 400 A
PD Power dissipation(1) 3.2 W
Power dissipation, TC = 25°C 156
TJ Operating junction temperature –55 to 150 °C
Tstg Storage temperature –55 to 150 °C
EAS Avalanche energy, single pulse
ID = 88 A, L = 0.1 mH, RG = 25 Ω		 387 mJ
  1. Typical RθJA = 40°C/W on a 1 inch2 , 2 oz. Cu pad on a 0.06 inch thick FR4 PCB.
  2. Max RθJC = 0.8°C/W, pulse duration ≤100 μs, duty cycle ≤1%

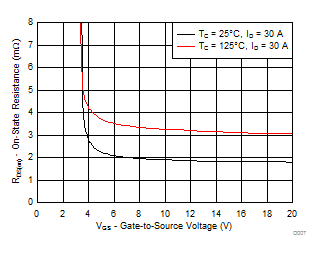

RDS(on) vs VGS

CSD18502Q5B D007_SLPS320.gif

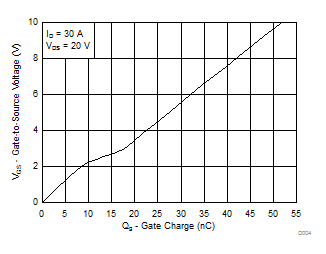

Gate Charge

CSD18502Q5B D004_SLPS320_FP.gif
