1 Features

  • Extremely Low Resistance
  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package

2 Applications

  • Point of Load Synchronous Buck in Networking, Telecom, and Computing Systems
  • Synchronous Rectification
  • Active ORing and Hotswap Applications

3 Description

This 30 V, 0.95 mΩ, 5 × 6 mm SON NexFET™ power MOSFET is designed to minimize losses in synchronous rectification and other power conversion applications.

Top View

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 39 nC
Qgd Gate Charge Gate-to-Drain 9.3 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V 1.15 mΩ
VGS = 10 V 0.95 mΩ
VGS(th) Threshold Voltage 1.4 V

Ordering Information(1)

Device Qty Media Package Ship
CSD17559Q5 2500 13-Inch Reel SON 5 × 6 mm Plastic Package Tape and Reel
CSD17559Q5T 250 13-Inch Reel
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 100 A
Continuous Drain Current (Silicon limited), TC = 25°C 257
Continuous Drain Current(1) 40 A
IDM Pulsed Drain Current(2) 400 A
PD Power Dissipation(1) 3.2 W
Power Dissipation, TC = 25°C 96
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 104 A, L = 0.1m H, RG = 25 Ω		 541 mJ
  1. Typical RθJA = 40°C/W on 1 inch2 (6.45 cm2), 2 oz.
    (0.071 mm thick) Cu pad on a 0.06 inch (1.52 mm) thick FR4 PCB.
  2. Max RθJC = 1.2°C/W, pulse duration ≤100 μs, duty cycle ≤1%

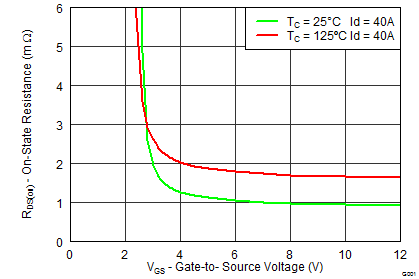

RDS(on) vs VGS

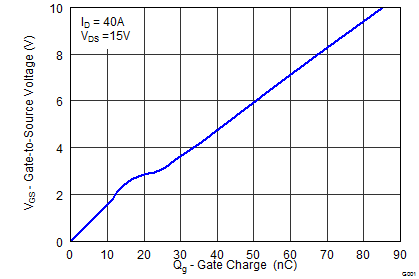

Gate Charge
