1 Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free
  • RoHS Compliant
  • Halogen Free
  • SON 3.3 mm × 3.3 mm Plastic Package

2 Applications

  • Point-of-Load Synchronous Buck in Networking, Telecom, and Computing Systems
  • Optimized for Control FET Applications

3 Description

This 30 V, 7.8 mΩ, 3.3 mm × 3.3 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

Top View

CSD17551Q3A P0093-01_LPS198.gif

SPACE

SPACE

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 30 V
Qg Gate Charge Total (4.5 V) 6.0 nC
Qgd Gate Charge Gate-to-Drain 1.5 nC
RDS(on) Drain-to-Source On Resistance VGS = 4.5 V 9.6 mΩ
VGS = 10 V 7.8 mΩ
VGS(th) Threshold Voltage 1.6 V

Ordering Information(1)

DEVICE QTY MEDIA PACKAGE SHIP
CSD17551Q3A 2500 13-Inch Reel SON
3.3 mm × 3.3 mm Plastic Package		 Tape and Reel
CSD17551Q3AT 250 7-Inch Reel
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C unless otherwise stated VALUE UNIT
VDS Drain-to-Source Voltage 30 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current, TC = 25°C 48 A
Continuous Drain Current, Silicon Limited 48 A
Continuous Drain Current, TA = 25°C(1) 12 A
IDM Pulsed Drain Current, TA = 25°C(2) 71 A
PD Power Dissipation(1) 2.6 W
TJ, Tstg Operating Junction Temperature,
Storage Temperature		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 25 A, L = 0.1 mH, RG = 25 Ω		 31 mJ
  1. Typical RθJA = 48°C/W on a 1 inch2 (6.45 cm2),
    2 oz. (0.071 mm thick) Cu pad on a 0.06 inch (1.52 mm) thick FR4 PCB.
  2. Pulse duration ≤300 μs, duty cycle ≤2%

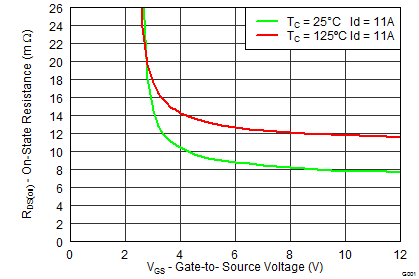

RDS(on) vs VGS

CSD17551Q3A graph07p2_SLPS386.png

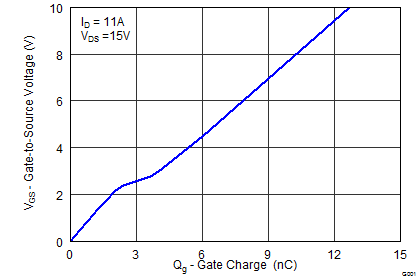

Gate Charge

CSD17551Q3A graph04p2_SLPS386.png
