1 Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 3.3 mm × 3.3 mm Plastic Package

2 Applications

  • Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
  • Optimized for Control or Synchronous FET Applications

3 Description

This 25 V, 4.2 mΩ, 3.3 mm × 3.3 mm SON NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

Top View
CSD16406Q3 P0095-01_LPS202.gif

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 25 V
Qg Gate Charge Total (4.5 V) 5.8 nC
Qgd Gate Charge Gate to Drain 1.5 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V 5.9 mΩ
VGS = 10 V 4.2 mΩ
Vth Threshold Voltage 1.8 V

.
Ordering Information(1)

DEVICE MEDIA QTY PACKAGE SHIP
CSD16406Q3 13-Inch Reel 2500 SON 3.3 x 3.3 mm
Plastic Package		 Tape and Reel
CSD16406Q3T 13-Inch Reel 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 25 V
VGS Gate-to-Source Voltage +16 / –12 V
ID Continuous Drain Current (Package limited) 60 A
Continuous Drain Current (Silicon limited), TC = 25°C 79
Continuous Drain Current(1) 19
IDM Pulsed Drain Current(2) 240 A
PD Power Dissipation(1) 2.8 W
Power Dissipation, TC = 25°C 46
TJ,
Tstg 		Operating Junction Temperature,
Storage Temperature		 –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 45 A, L = 0.1 mH, RG = 25 Ω		 101 mJ
  1. Typical RθJA = 45°C/W on a 1 inch2, 2 oz. Cu pad on a 0.06 inch thick FR4 PCB.
  2. Max RθJC = 2.7°C/W, pulse duration ≤100 μs, duty cycle ≤1%

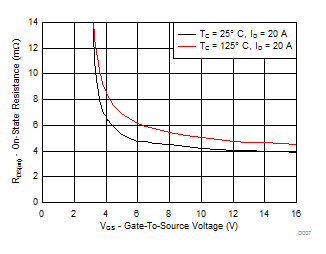

RDS(on) vs VGS

CSD16406Q3 D007_SLPS202.gif

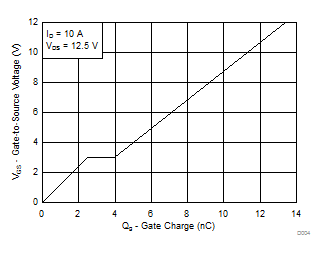

Gate Charge

CSD16406Q3 D004_SLPS202_FP.gif
